Free Samples Powder Coating for Pipeline Valves Paint

Basic Info.

Model NO.	Sam0136
Method	Spray
Components	Resin, Pigment, Additive
Main Raw Material	Epoxy
Level	Finish Coat
Certification	RoHS, ISO9001
Substrate	Iron, Steel, Aluminium etc..
Expiration Date	1 year
Formation Mechanism	Conversion Type
Packaging	Plastic Drum
Colors	Ral Color
Surface	Hard
Curing Condition	180-200 Degree/ 10-20minutes
Factory Founded	2007
Transport Package	Carton
Specification	20KG
Trademark	Sam
Origin	China
HS Code	3907999990
Production Capacity	3000 Tons Per Month

Product Description

Powder coating for valve pipesProduct composition:A thermosetting powder coating produced using special heavy-duty anti-corrosion resin and special curing agent.Excellent mechanical properties and excellent corrosion resistance.Suitable for pipes or valves with metal surfaces susceptible to chemical attack.Product Series:(Good quality and low price)We can provide products with high gloss (above 86 degrees), flat gloss (50-85 degrees), and matte gloss (6-49 degrees), or we can customize the gloss according to customers.Main physics function:Specific gravity: 1.4-1.8/cm ³ (Due to different colors and types)Particle size distribution: 100% less than 100 μ M (can be adjusted according to special coating requirements)Coverage: about 9 square metre/kg, film thickness 60 μ M (flat coating, calculated at 100% utilization rate)For example

Product details
Type	High Gloss Powder Coating
Color	chrome effect, chrome rose gold, chrome pink, chrome green, chrome red and etc.(Colors can be customized)
Surface Finish	chrome
Gloss level	>530°
Particle Size	Average 32-42μm
Specific Gravity	1.2-1.7g per cubic meter
Coverage	8-10 square meters per Kg at 60-90 μm film thickness
film thickness	Not less than 100μm
Powder coated Film Mechanical Properties
Adhesion	Cross-cut(2mm),no loss of adhesion
Impact Resistance	Direct impact 50kg/cm
Pencil Hardness	1H-2H
Cupping Test	6mm Mandrel
Bending Test	5mm

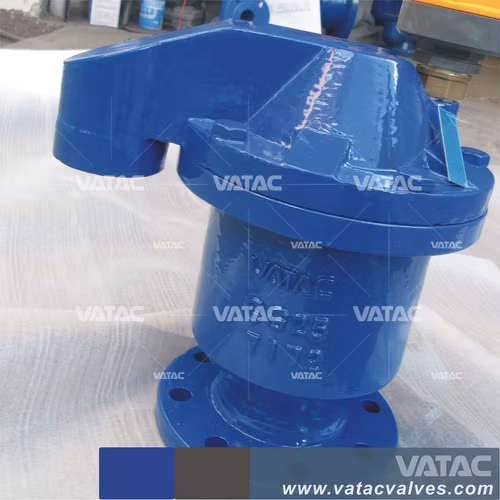

Valve Parts

Valve Parts

Anticorrosive pipeline.And so on.
PRODUCTION PROCESS(Real photos No processing)

Production line(30 production lines)

Raw material (first-in first-out)
Semi-manufactures
Semi-manufactures
Semi-manufactures
Semi-manufactures
Semi-manufacturesSemi-manufactures
Finished product
Finished product
Finished product
Packing
Packing
Testing
Testing
Testing
TestingTestingSample tracking(Customized products)
Sample tracking(Customized products)

Finished product warehouse

Purchase Note:1.MOQ :The minimum order is 500kgs ,each color ≥ 100kgs2.Colors:RAL color: We usually use RAL colors that is widely used in paint industry and easily find in market.Custom color: Color matching is available, if you have colors panel, please send to us for matching.3.Prices:Prices depend on the colors and using environment , please tell us the colors and usingenvironment (indoor use or outdoor use).4.Time of delivery :Production will take about 5-8 days after receipt of prepayment, it depends on the quantity.5.Payment :30% T/T prepayment , 70% T/T before shipment (or against BL) or LC at sight . 6.Samples:1kg powder sample is available for each color for your testing.Sample is free of cost, but we will highly appreciate if you pay for the courier charge.
